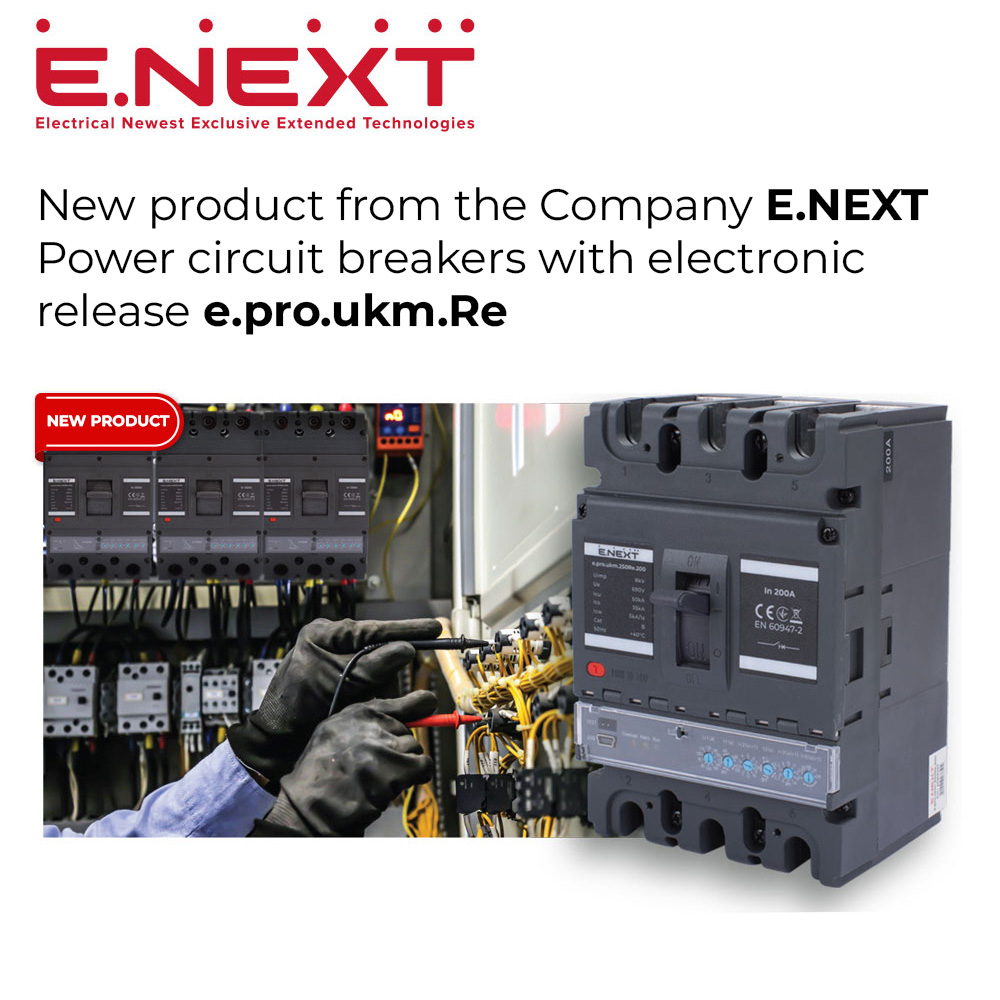

  • New product from the Company E.NEXT — Power circuit breakers with electronic release e.pro.ukm.Re

    30.01.2025

    Power circuit breakers of the e.pro.ukm.Re series are designed for reliable protection of power grids and equipment against overloads and short circuits.


    Key advantages:

    1. Wide range of rated currents the e.pro.ukm.Re series covers a wide range of rated currents: from 63 A to 800 A.
    2. Precise Parameter Adjustment

      3. ● Overload trip time (tr): 12, 60, 80, 100, 150 s.;

      ● Rated current setpoint adjustment (Ir): 0.4-1 × In;

      ● Short-circuit trip setpoint with delay (Isd): 2-12 × In;

      ● Short-circuit trip time delay (tsd): 0.06-0.3 s (Off);

      ● Instantaneous short-circuit trip setpoint: 4-14 × In;

      ● Pre-fault indication setting: 0.7-1 × In.

      The precision of the settings allows the circuit breakers to be adapted to protect the current-carrying elements of the power grid, preventing them from overheating or destruction in the event of overloads or short circuits. This ensures stable and safe operation of the entire electrical system.


    3. High mechanical life

      4. The circuit breakers can withstand up to 8500 cycles of operation, which confirms the durability of the device even under intensive use.


    4. High electrical life

      5. This series of circuit breakers provides up to 1500 switching on and off cycles under load, which guarantees reliable operation for a long time.

    Thanks to their characteristics, e.pro.ukm.Re circuit breakers are the optimal choice for the protection of modern power grids. They ensure stable operation of systems, durability and reliability even in difficult operating conditions.


    Аssortment range

    Vendore code Item name
    p087001 Moulded case circuit breaker e.pro.ukm.125Re.63 with electronic release, 3р, 63А
    p087002 Moulded case circuit breaker e.pro.ukm.125Re.80 with electronic release, 3р, 80А
    p087003 Moulded case circuit breaker e.pro.ukm.125Re.100 with electronic release, 3р, 100А
    p087004 Moulded case circuit breaker e.pro.ukm.125Re.125 with electronic release, 3р, 125А
    p087005 Moulded case circuit breaker e.pro.ukm.160Re.160 with electronic release, 3р, 160А
    p087006 Moulded case circuit breaker e.pro.ukm.250Re.160 with electronic release, 3р, 160А
    p087007 Moulded case circuit breaker e.pro.ukm.250Re.200 with electronic release, 3р, 200А
    p087008 Moulded case circuit breaker e.pro.ukm.250Re.250 with electronic release, 3р, 250А
    p087009 Moulded case circuit breaker e.pro.ukm.400Re.320 with electronic release, 3р, 320А
    p087010 Moulded case circuit breaker e.pro.ukm.400Re.400 with electronic release, 3р, 400А
    p087011 Moulded case circuit breaker e.pro.ukm.630Re.500 with electronic release, 3р, 500А
    p087012 Moulded case circuit breaker e.pro.ukm.630Re.630 with electronic release, 3р, 630А
    p087013 Moulded case circuit breaker e.pro.ukm.800Re.800 with electronic release, 3р, 800А
    p087106 Alarm and auxiliary contact e.pro.ukm.125Re.alr, right
    p087107 Alarm and auxiliary contact e.pro.ukm.250Re.alr, right
    p087108 Alarm and auxiliary contact e.pro.ukm.400Re.alr, right
    p087109 Alarm and auxiliary contact e.pro.ukm.630Re.alr, right
    p087110 Alarm and auxiliary contact e.pro.ukm.800Re.alr, right
    p087111 Shunt release e.pro.ukm.125Re.sht, left
    p087112 Shunt release e.pro.ukm.250Re.sht, left
    p087113 Shunt release e.pro.ukm.400Re.sht, left
    p087114 Shunt release e.pro.ukm.630Re.sht, left
    p087115 Shunt release e.pro.ukm.800Re.sht, left
    p087116 Motor operation mechanism e.pro.ukm.125Re.MDX, 230В
    p087117 Motor operation mechanism e.pro.ukm.250Re.MDX, 230В
    p087118 Motor operation mechanism e.pro.ukm.400Re.MDX, 230В
    p087119 Motor operation mechanism e.pro.ukm.630Re.MDX, 230В
    p087120 Motor operation mechanism e.pro.ukm.800Re.MDX, 230В
    p087121 Busbar e.pro.ukm.125Re.busbar
    p087122 Busbar e.pro.ukm.250Re.busbar
    p087123 Busbar e.pro.ukm.400Re.busbar
    p087124 Busbar e.pro.ukm.630Re.busbar
    p087125 Busbar e.pro.ukm.800Re.busbar

    Everything will be E.NEXT e.moji
